Deck Keyboard Tech Specs




11 reasons why we are better than them.

1. Lighting: All keyboard characters are INDIVIDUALLY backlit by single L.E.D.'s. Each and every key, NOT just the frame and gaps in between.

2. The L.E.Ds: Deck™s lights are rated at 200,000 hours of life. That's pushing 22 years if the Deck™ is never turned off. It has seven different intensity levels and full brightness is tweaked to 5.25 milliamps.

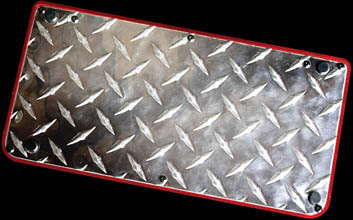

3. Bottom Pan: Industrial diamond plate metal. Not just mere plastic.1

4. Connection/Interface: USB 1.1; Type A plug. No separate cord, Déck is powered by your PC.

5. MTBF (mean time before failure): 86,000 hrs.

6. Switches: Will absorb near 20 years of heavy use. Deck™ is constructed with 50-million cycle switches and gold cross point key switches. Putting it into perspective, the keyboard you are using right now is most likely using 1 million cycle and no gold.

7. Board: The FR4 (fiberglass printed circuit board material) is built for strength, reparability and straightness. We reinforced the double-sided plate through holes with a black solder mask.

8. Op Temp: Deck™s operate smoothly from minus 40°C to plus 70°C. So you're safe in both Antarctica and Death Valley. You never know, you know?

9. Key Caps: Characters can't chip off the key caps or wear down to oblivion. Period. Deck™ uses a sublimated negative printing process which drives the ink into the plastic keycaps at 525°f. This means permanent printing from the inside out, not on.

10. Add ons: Deck™s ship with an extra skull & crossbones key cap, setting the stage for your mod.

11. Typing Rate: Type up to 240 characters per second! Go that fast and still get the codes out in the right sequence. You cannot type this fast. Ever.





See our warranty and product disclaimer here.



1 = Metal bottom pan only on Deck 82 and Deck 21 models.
